Searching for a driver each time a smart card is connected

This behavior occurs when Windows detect a smart card which has no driver. This could happened if your manufacturer didn’t package the CSP or the minidriver using an inf file.

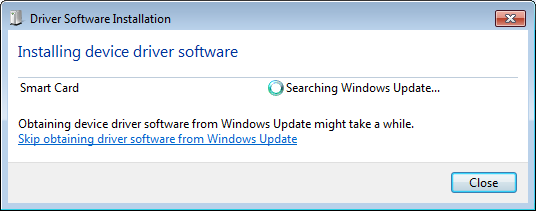

installing device driver software smart card searching windows update

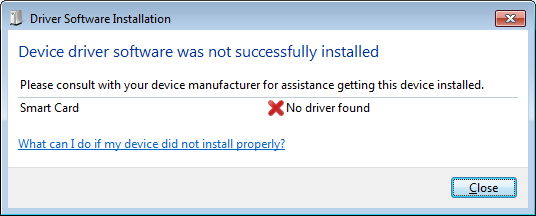

device driver software was not successfully installed - smart card - no driver found

Solution :

  1. you can disable the smart card plug and play
  2. or, you can install a fake driver manually.

Alternative A) disable the smart card plug and play

To disable smart card Plug and Play in local Group Policy
1. On a client computer, click Start, type gpedit.msc in the Search programs and files box, and then press ENTER.
2. In the console tree under Computer Configuration, click Administrative Templates.
3. In the details pane, double-click Windows Components, and then double-click Smart Card.
4. Right-click Turn on Smart Card Plug and Play service, and then click Edit.
5. Click Disabled, and then click OK.
Or

Create a reg file using the following text and apply it.

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\ScPnP]
"EnableScPnP"=dword:00000000

[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Policies\Microsoft\Windows\ScPnP]
"EnableScPnP"=dword:00000000



Alternative B) create a fake driver

find the historical bytes

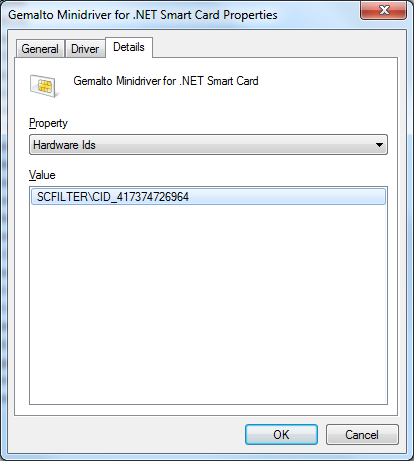

Open the device manager, look for the smart card in error. Go to property then attributes. Search for Hardware ID which begins with “SCFILTER\”

historical_bytes_in_hardware_id

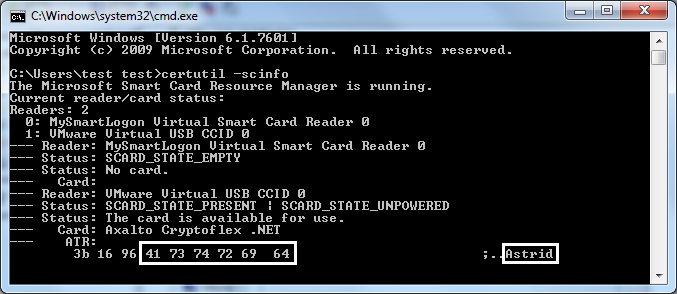

In this case, the historical bytes are : 41 73 74 72 69 64. They are also part of the ATR which can be found using the command “certutil -scinfo”. In this case, we can see the bytes translated in ASCII to “Astrid” which is the code name of the card.

historical_bytes_in_certutil

create an inf file

Create a file with the “inf extension” and copy paste the following content. Replace the “SCFILTER\” with the SCFILTER you have.

;
;FabrikamVendor Smartcard Minidriver for an x86 and x64 based package.
;

[Version]
Signature="$Windows NT$"
Class=SmartCard
ClassGuid={990A2BD7-E738-46c7-B26F-1CF8FB9F1391}
Provider=%ProviderName%
DriverVer=04/03/2013,1.0.0.0

[Manufacturer]
%ProviderName%=Minidriver,NTamd64,NTamd64.6.1,NTx86,NTx86.6.1

[Minidriver.NTamd64]
%CardDeviceName%=Minidriver64_Install,SCFILTER\CID_51FF0800

[Minidriver.NTx86]
%CardDeviceName%=Minidriver32_Install,SCFILTER\CID_51FF0800

[Minidriver.NTamd64.6.1]
%CardDeviceName%=Minidriver64_61_Install,SCFILTER\CID_51FF0800

[Minidriver.NTx86.6.1]
%CardDeviceName%=Minidriver32_61_Install,SCFILTER\CID_51FF0800

[Minidriver64_61_Install.NT]
Include=umpass.inf
Needs=UmPass

[Minidriver32_61_Install.NT]
AddReg=AddRegDefault
Include=umpass.inf
Needs=UmPass

[Minidriver64_61_Install.NT.Services]
Include=umpass.inf
Needs=UmPass.Services

[Minidriver32_61_Install.NT.Services]
Include=umpass.inf
Needs=UmPass.Services

[Minidriver64_61_Install.NT.HW]
Include=umpass.inf
Needs=UmPass.HW

[Minidriver64_61_Install.NT.CoInstallers]
Include=umpass.inf
Needs=UmPass.CoInstallers

[Minidriver64_61_Install.NT.Interfaces]
Include=umpass.inf
Needs=UmPass.Interfaces

[Minidriver32_61_Install.NT.HW]
Include=umpass.inf
Needs=UmPass.HW

[Minidriver32_61_Install.NT.CoInstallers]
Include=umpass.inf
Needs=UmPass.CoInstallers

[Minidriver32_61_Install.NT.Interfaces]
Include=umpass.inf
Needs=UmPass.Interfaces


; =================== Generic ==================================

[Strings]
ProviderName ="FabrikamVendor"
CardDeviceName="FabrikamVendor Minidriver for Smart Card"

Install the inf

In the device manager, choose the smart card then in the properties, choose “update driver”. Choose the options “search a pilote on my computer” then select the folder where the inf file is located. If there is no compatible driver found, the SCFILTER string is wrong.

Debugging

If the install failed, there are maybe a typo in the inf file. You can use the tool chkInf in the Windows SDK to debug the inf file.
